This guide shows how to use a TP-Link Omada Wi-Fi deployment (EAP access points behind a self-hosted Omada Software Controller) as a Powerlynx captive-portal NAS, using the RADIUS + External Web Portal flow.
How it works, in one paragraph: the Omada controller — not each individual EAP — is the RADIUS client and the CoA/PoD (UDP 3799) receiver. A client that joins the hotspot SSID is redirected to the Powerlynx splash page. After the user logs in/pays, Powerlynx auto-POSTs the client’s browser back to the controller’s /portal/radius/browserauth endpoint, and the controller then performs the RADIUS exchange (auth + accounting) with Powerlynx over a WireGuard tunnel.
Important:This configuration only works with an on-premise / self-hosted Omada controller.
On Omada Cloud it does not work — the cloud controller cannot receive RADIUS PoD or CoA (UDP 3799) from Powerlynx, so remote disconnect and dynamic authorization are impossible there. Use a self-hosted Software Controller (or a self-hosted hardware controller).
1. Architecture / topology

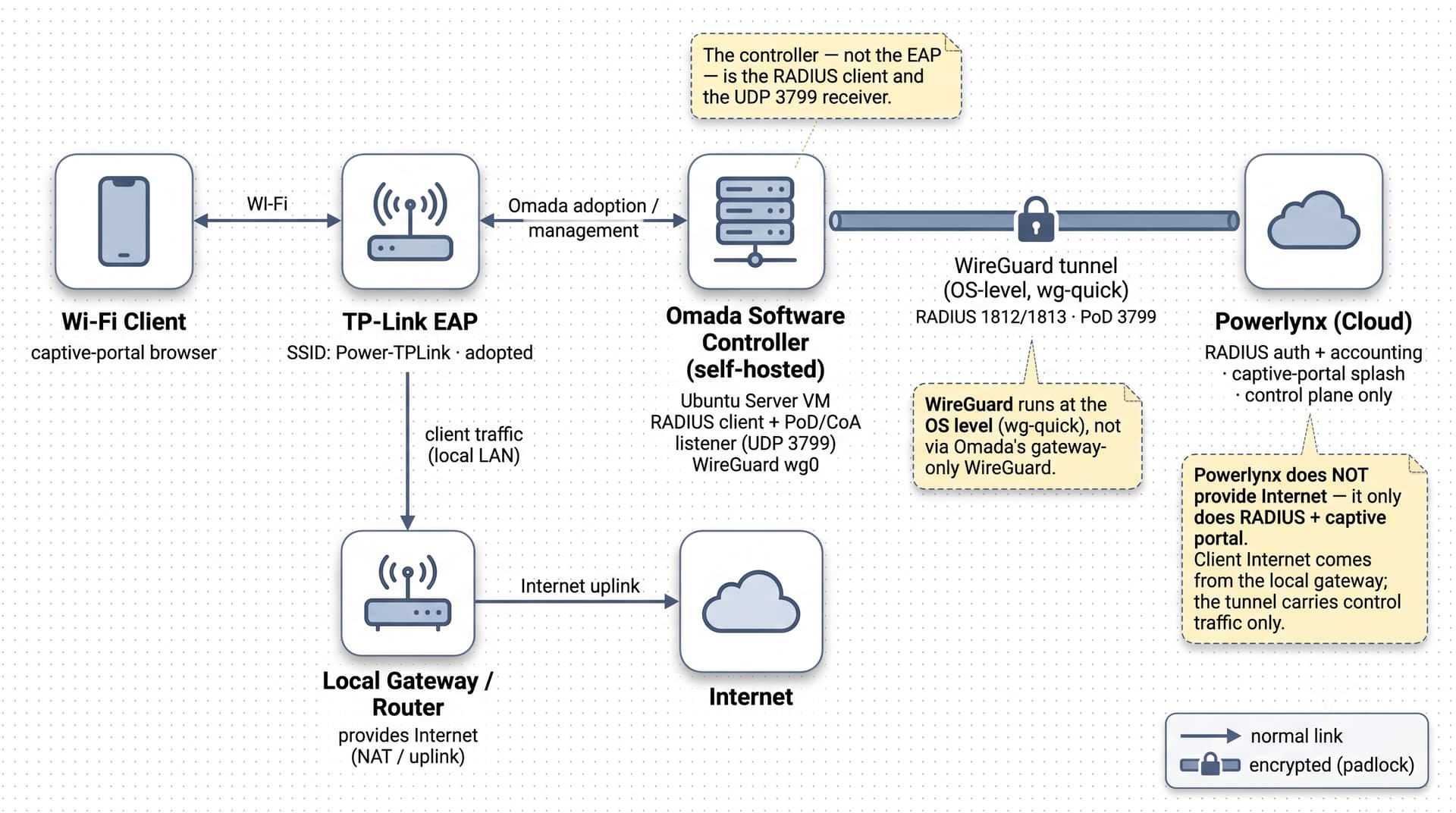

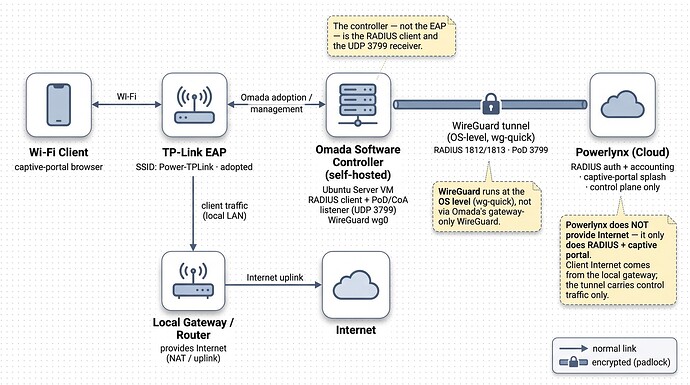

Traffic and control chain:
Wi-Fi client → TP-Link EAP (SSID) → self-hosted Omada Controller → WireGuard → Powerlynx
(RADIUS client + UDP 3799 listener)
- The controller is the RADIUS client (sends Access-Request / accounting) and the UDP 3799 listener that receives Disconnect (PoD) requests from Powerlynx.
- The WireGuard tunnel terminates at the operating-system level on the controller host (
wg-quick), not via Omada’s built-in WireGuard. Omada’s WireGuard is a GATEWAY/ER-series-only feature and does nothing on a Software Controller. - Powerlynx does not provide Internet access. It is the control plane only — RADIUS auth/accounting and the captive-portal splash page. Client Internet is provided by the site’s own gateway / uplink (a separate router). The WireGuard tunnel carries only the RADIUS/CoA control traffic between the controller and Powerlynx — never user data.
2. Prerequisites
| Requirement | Detail |
|---|---|
| Host OS | Linux — Ubuntu 16.04 / 18.04 / 20.04 / 22.04 / 24.04, or Debian 8–12 (64-bit). Windows is also supported. |
| Java | OpenJDK 17+ (64-bit) for controller v5.15.20 and above (earlier builds use Java 8+). |
| MongoDB | Up to MongoDB 8 for v5.15.20+ (up to v7 for 5.14.20+). |
| jsvc | Apache Commons Daemon (jsvc) — v1.0.15 recommended with OpenJDK 17. |
| Controller | Omada Software Controller, v5 line (this guide uses the 5.15.x release; the current shipping line is v6.2.x, so pick 5.15.x under “Previous Version” on the download page). |
| Access point | A TP-Link Omada EAP (e.g. EAP225 v3+). |
| Static/Dynamic IP | IP for the controller host — EAP adoption and RADIUS config reference it by IP. |
| Powerlynx | A Powerlynx Location and a hotspot already created. |
For host hardware sizing and the full requirement matrix, follow TP-Link’s official install guide (see References).
3. Install the Omada controller
Install the Omada Software Controller (v5 line) on the Ubuntu host. Official download and install links are in the References section at the end.
# 1. OpenJDK 17 + jsvc
sudo apt update
sudo apt install -y openjdk-17-jre-headless jsvc curl gnupg
# 2. MongoDB 8.0
curl -fsSL https://www.mongodb.org/static/pgp/server-8.0.asc | \
sudo gpg -o /usr/share/keyrings/mongodb-server-8.0.gpg --dearmor
echo "deb [ arch=amd64,arm64 signed-by=/usr/share/keyrings/mongodb-server-8.0.gpg ] https://repo.mongodb.org/apt/ubuntu jammy/mongodb-org/8.0 multiverse" | \
sudo tee /etc/apt/sources.list.d/mongodb-org-8.0.list
sudo apt update && sudo apt install -y mongodb-org
# 3. Install the controller .deb (download from the official page — see References)
sudo dpkg -i omada_v5.15.24.19_linux_x64_*.deb
# If dpkg complains about the jsvc version:
# sudo dpkg --ignore-depends=jsvc -i omada_v5.15.24.19_linux_x64_*.deb
# 4. Start
sudo tpeap start
tpeap status
Then open the UI at https://<controller-ip>:8043 and run the setup wizard: create the admin account, create a site, and skip Omada Cloud access (this is an on-prem setup).
nmapshows them “closed” while the service reports “running”, it is still starting — watchlogs/server.loguntil the ports open.
Verify the install
java -version # OpenJDK 17
sudo tpeap status # "Omada Controller is running"
sudo ss -tlnp | grep -E '8043|8088' # web ports listening = startup finished
Firewall ports
If the host runs a firewall, open these (controller v5.x):
| Port | Purpose |
|---|---|
| TCP 8043 / 8088 | HTTPS / HTTP management + captive portal |
| TCP 8843 | HTTPS captive portal |
| UDP 29810 | EAP discovery |
| TCP 29811–29814 | device adoption / management / firmware |
| TCP 29815–29816 | device data / remote CLI (v5.9+) |
For the Powerlynx side of the tunnel also allow:
| Direction | Port | Purpose |
|---|---|---|
| Controller → Powerlynx (outbound) | UDP 1812 / 1813 | RADIUS auth / accounting |
| Powerlynx → Controller (inbound) | UDP 3799 | PoD (disconnect) |
4. Adopt the EAP and create the WLAN (SSID)
- Power up the EAP on the same L2 network as the controller; it appears under Devices.

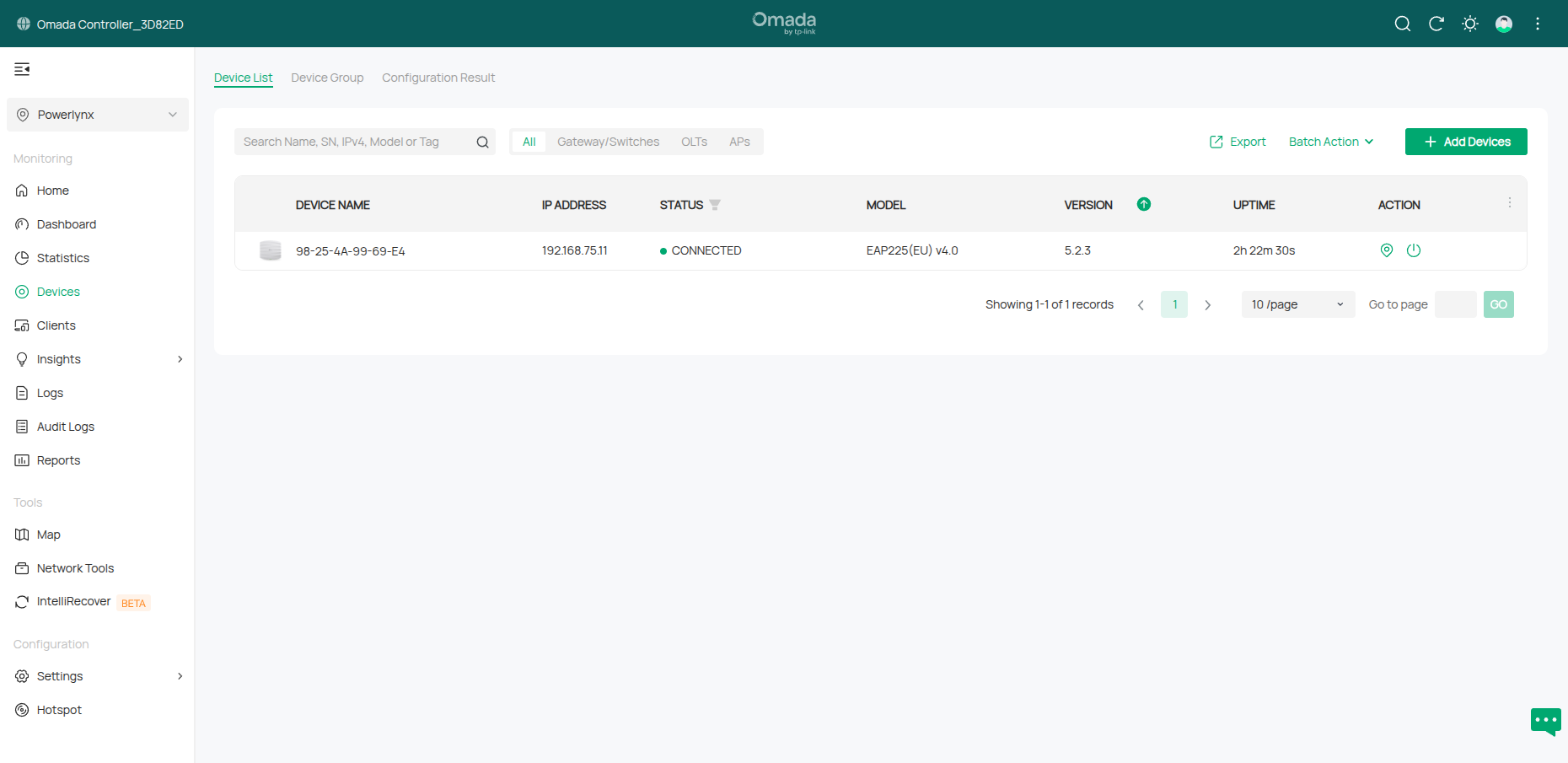

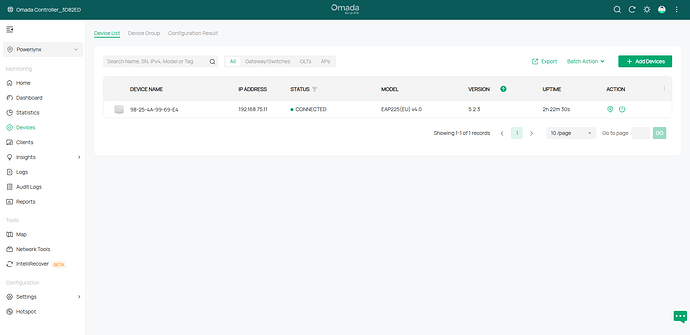

- Adopt it and wait for status CONNECTED.

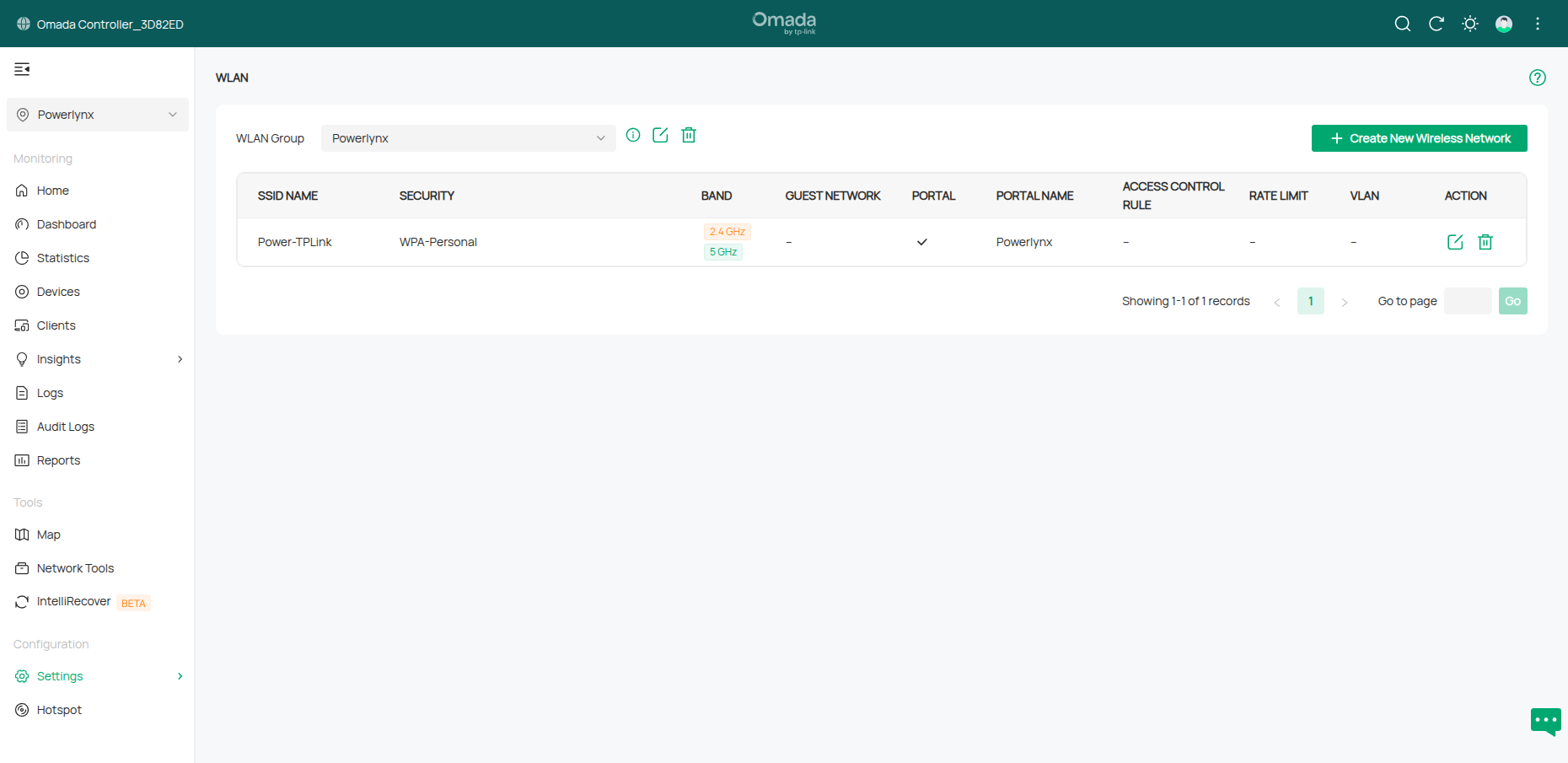

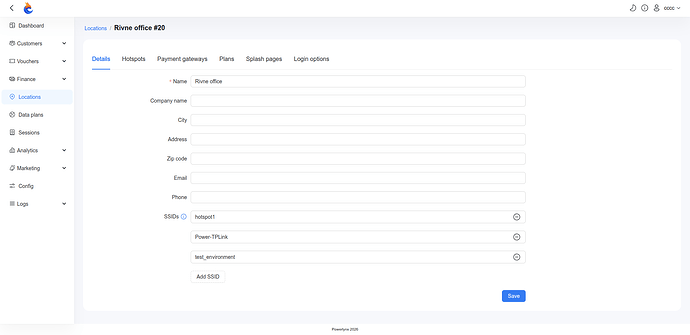

- Create a WLAN / SSID for the hotspot (Settings → Wireless Networks → WLAN) and set its name — this lab uses
Power-TPLink. For a lab, Open or WPA-Personal both work; production hotspots normally use an Open SSID so the captive portal can intercept unauthenticated clients. The Portal (section 7) is then applied to this WLAN.

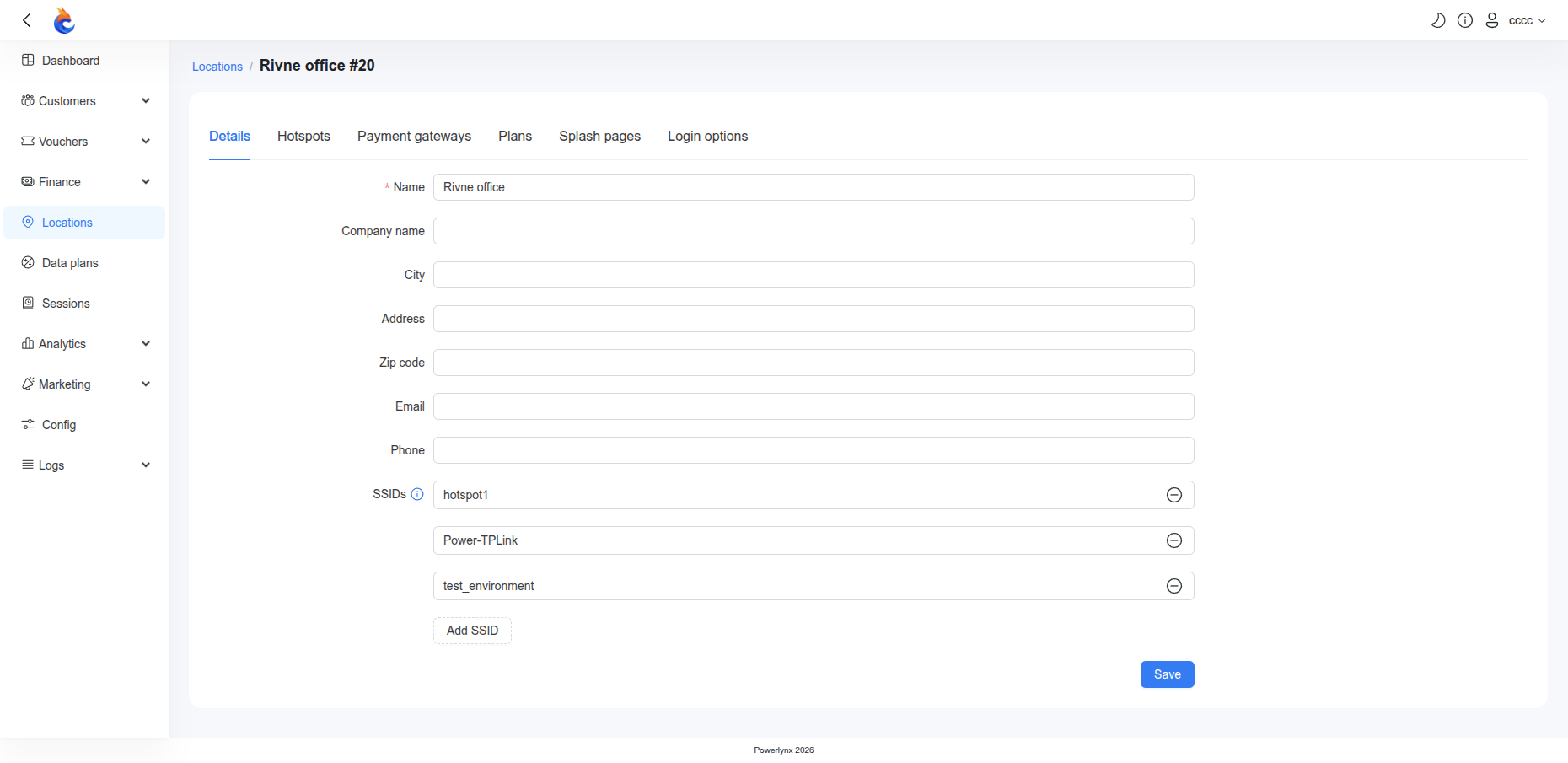

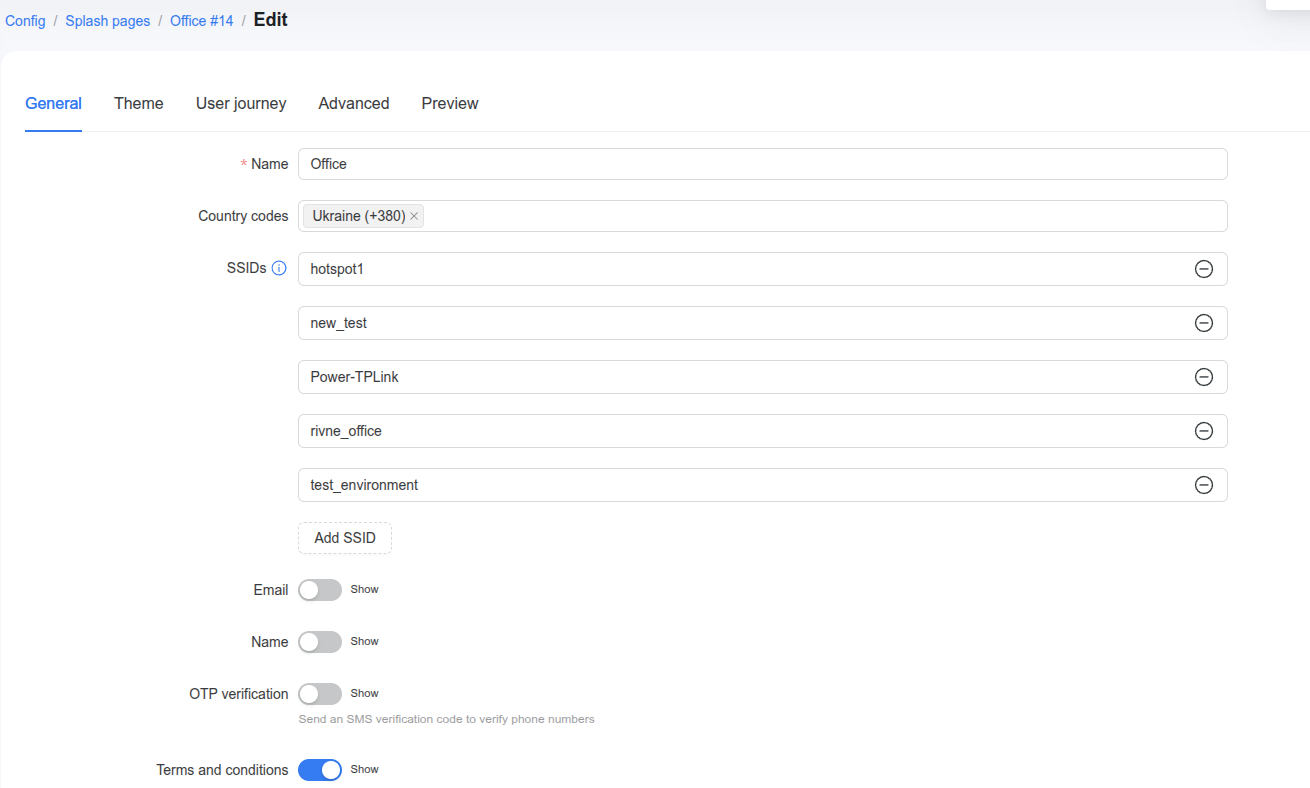

The WLAN name set on the Omada EAP (herePower-TPLink) must be entered exactly as the SSID on the Powerlynx side — on the Location and its Splash Page. If the names differ, the session will not map to the correct splash page / location.
5. WireGuard tunnel (controller host ↔ Powerlynx)
The tunnel runs at the OS level on the Ubuntu host.
Install WireGuard on the host:
sudo apt update && sudo apt install -y wireguard

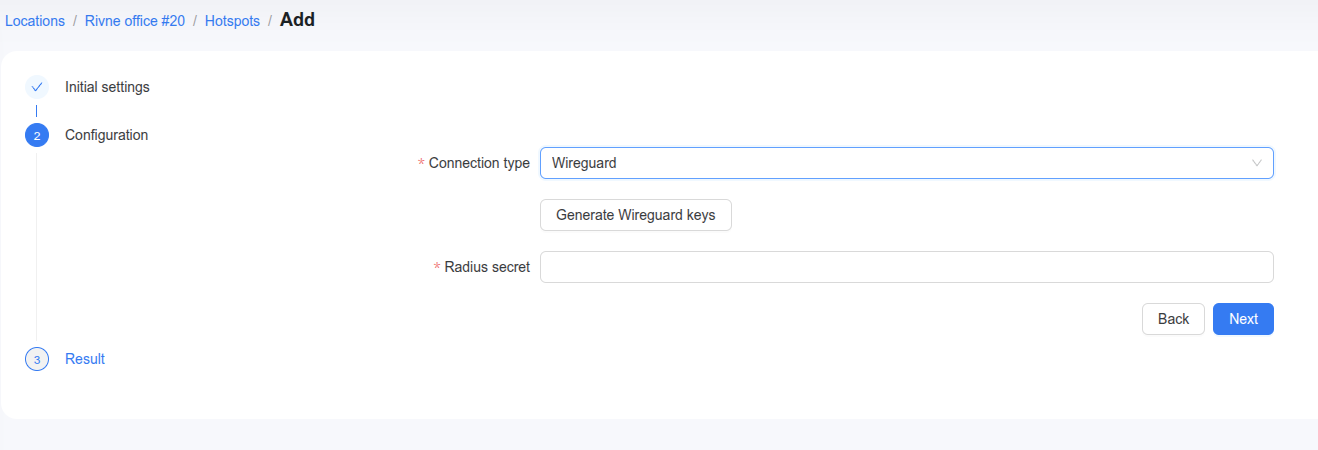

- When you create the WireGuard hotspot in Powerlynx (Location → Hotspots → Add, then the Configuration step), set Connection type = Wireguard, click Generate Wireguard keys, enter the Radius secret, and finish the wizard. Generating shows the client private key — copy it now for the Ubuntu side.
- Take the server endpoint and server public key from the generated router script
(the.rscPowerlynx produces). - Create
/etc/wireguard/wg0.confon the Ubuntu host:
[Interface]
PrivateKey = <client-private-key-from-regenerate>
Address = <controller-tunnel-ip>/32
[Peer]
PublicKey = lPYDyIwk5X4tyUMNT9ny/nyPSyHwk31mzm2ahOH7iV0=
Endpoint = 139.84.237.27:433
AllowedIPs = 172.16.0.1/32
PersistentKeepalive = 15
- Bring it up, enable it on boot, and verify:
sudo wg-quick up wg0 # start the tunnel now
sudo systemctl enable wg-quick@wg0 # start automatically on boot
systemctl status wg-quick@wg0.service # should be "active (exited)"
sudo wg show # peer, latest handshake, transfer counters
ping -c4 <powerlynx-tunnel-ip> # confirm connectivity through the tunnel

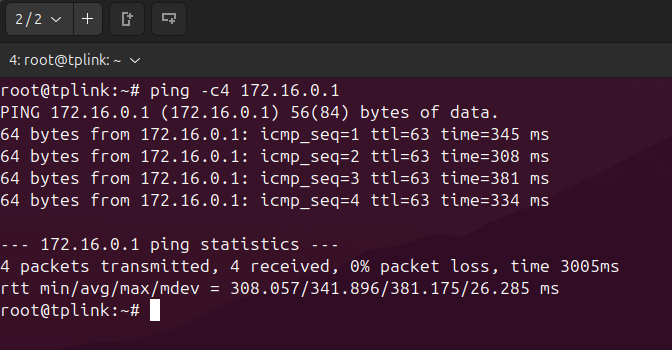

A successful ping to the Powerlynx tunnel address confirms the tunnel is up:

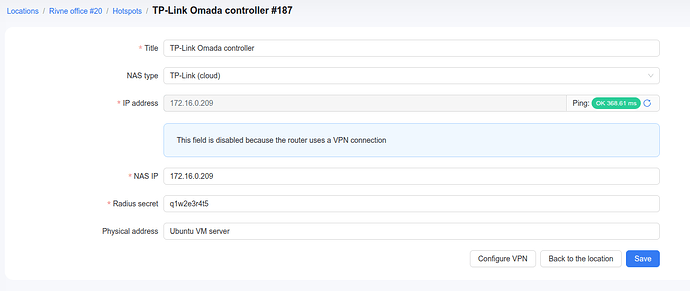

6. Powerlynx hotspot configuration

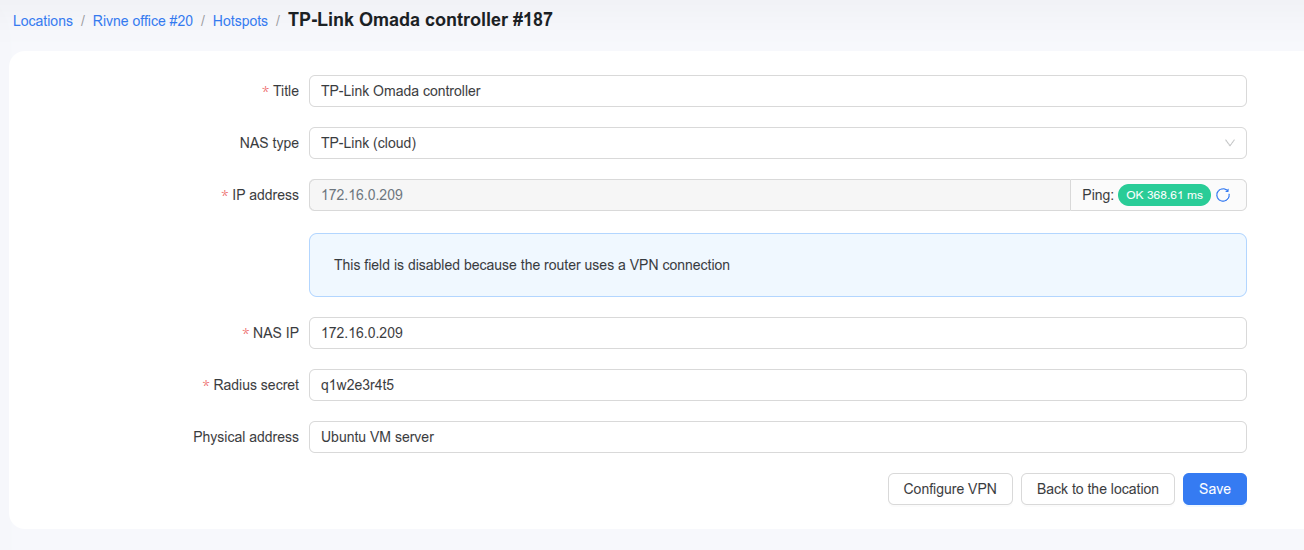

On the Powerlynx hotspot (Location → hotspot):
| Field | Value |
|---|---|
| NAS type | TP-Link (cloud) |
| Connection type | WireGuard |
| NAS IP | <controller-tunnel-ip> (the controller’s WireGuard address) |
| RADIUS secret | <your-radius-secret> |
7. Omada Portal + RADIUS profile

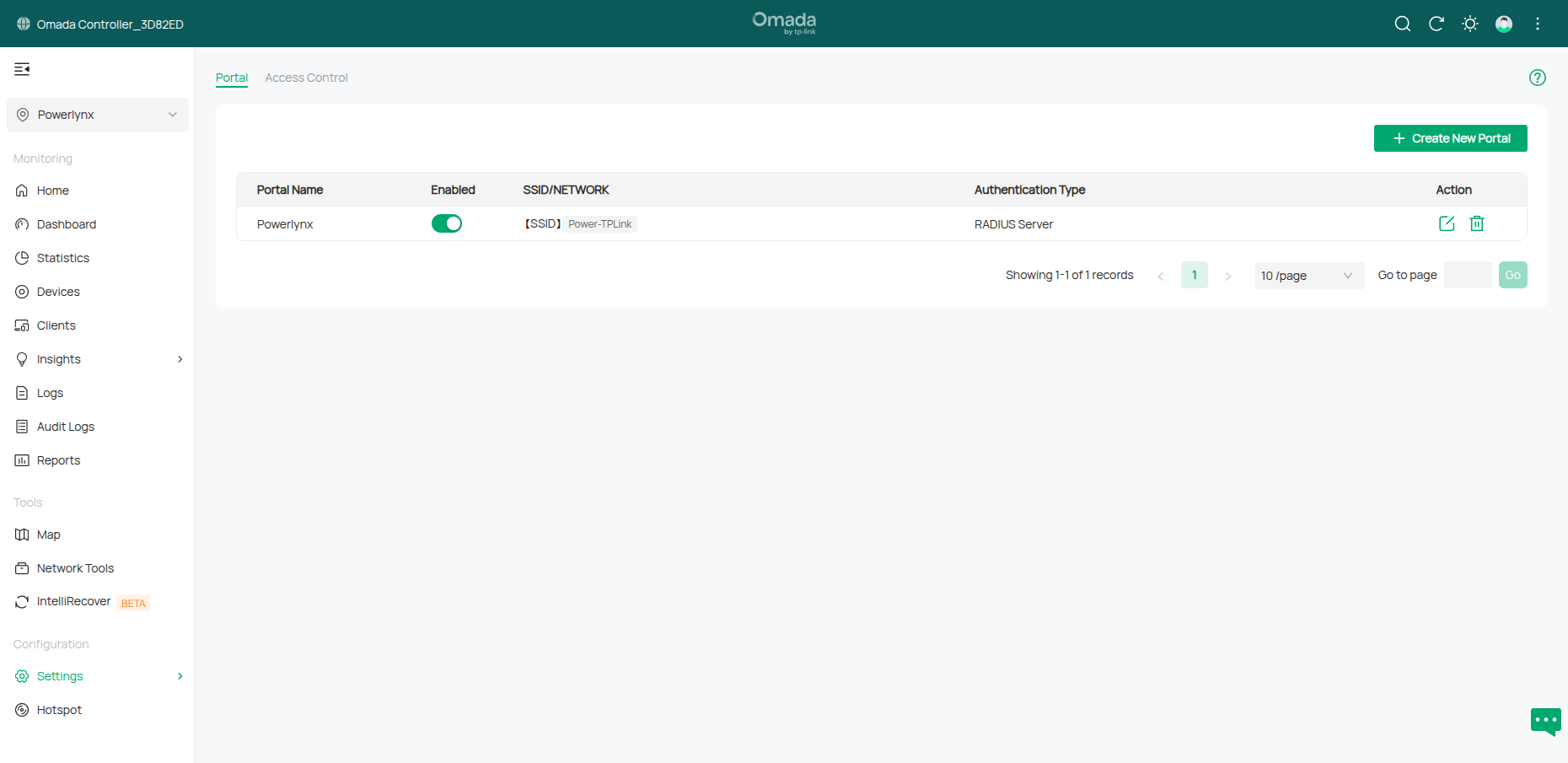

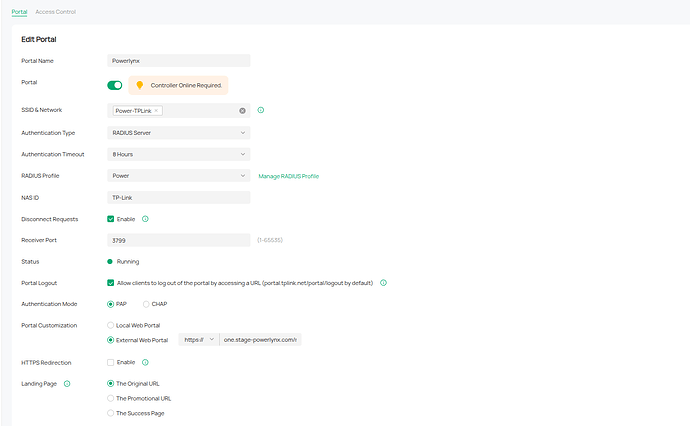

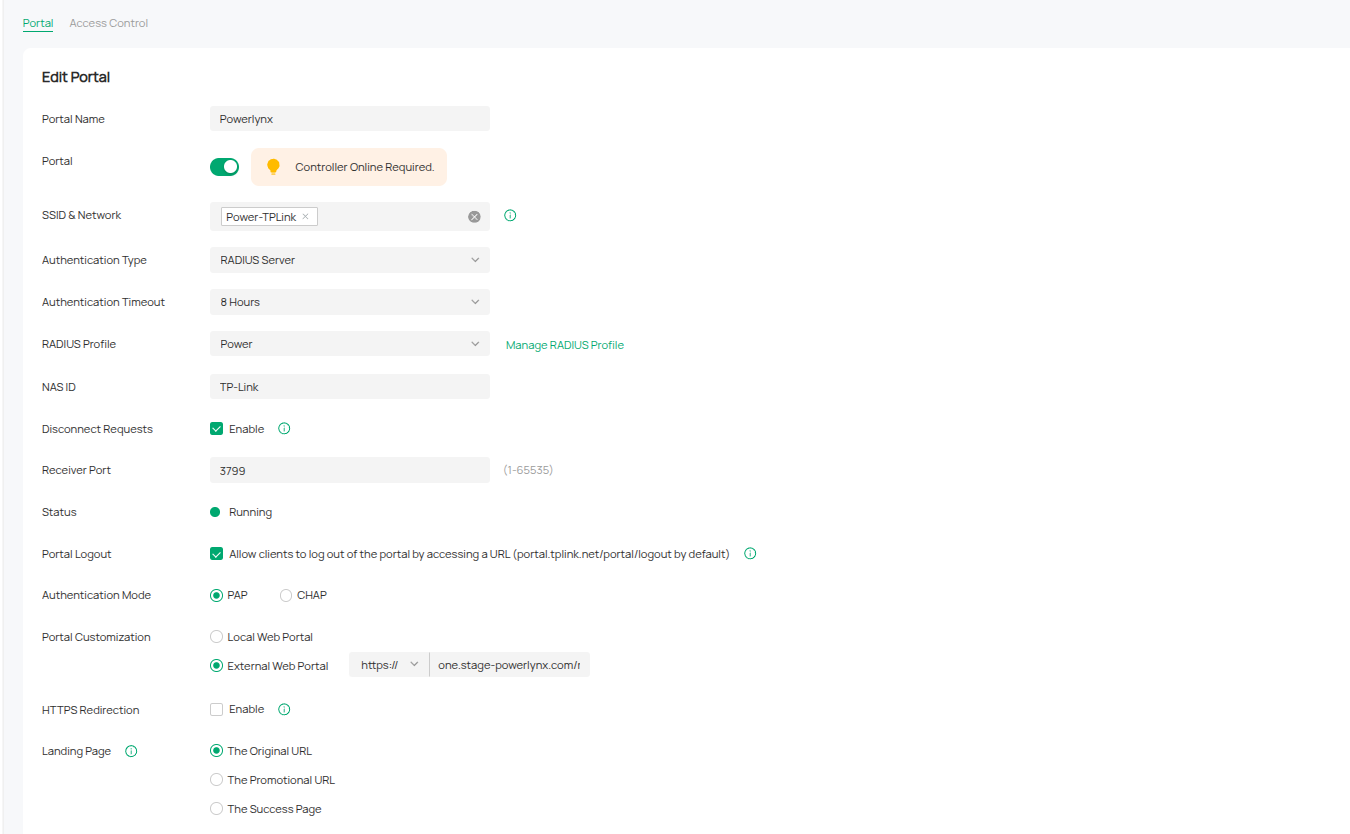

This is the critical configuration. In the controller: Settings → Authentication → Portal and Settings → Profiles → RADIUS Profile.
Portal
| Setting | Value | Note |
|---|---|---|
| Authentication Type | RADIUS Server | Do not pick “External Portal Server” — that is the deprecated controller-API flow Powerlynx does not use. |
| External Web Portal URL | https://yourpowerlynxdomain.app/redirect-flow |
Your Powerlynx portal’s redirect-flow URL — replace yourpowerlynxdomain.app with your own Powerlynx domain. |
| Disconnect Requests | Enabled | Enables the PoD listener. |
| Receiver Port | 3799 | |
| Authentication Mode | PAP | CHAP as fallback. |

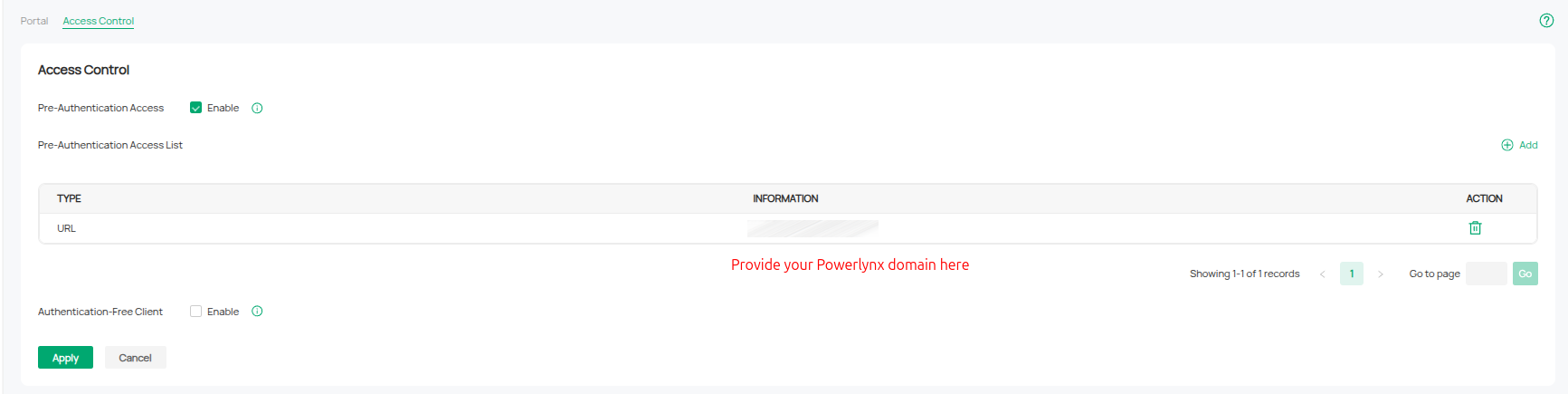

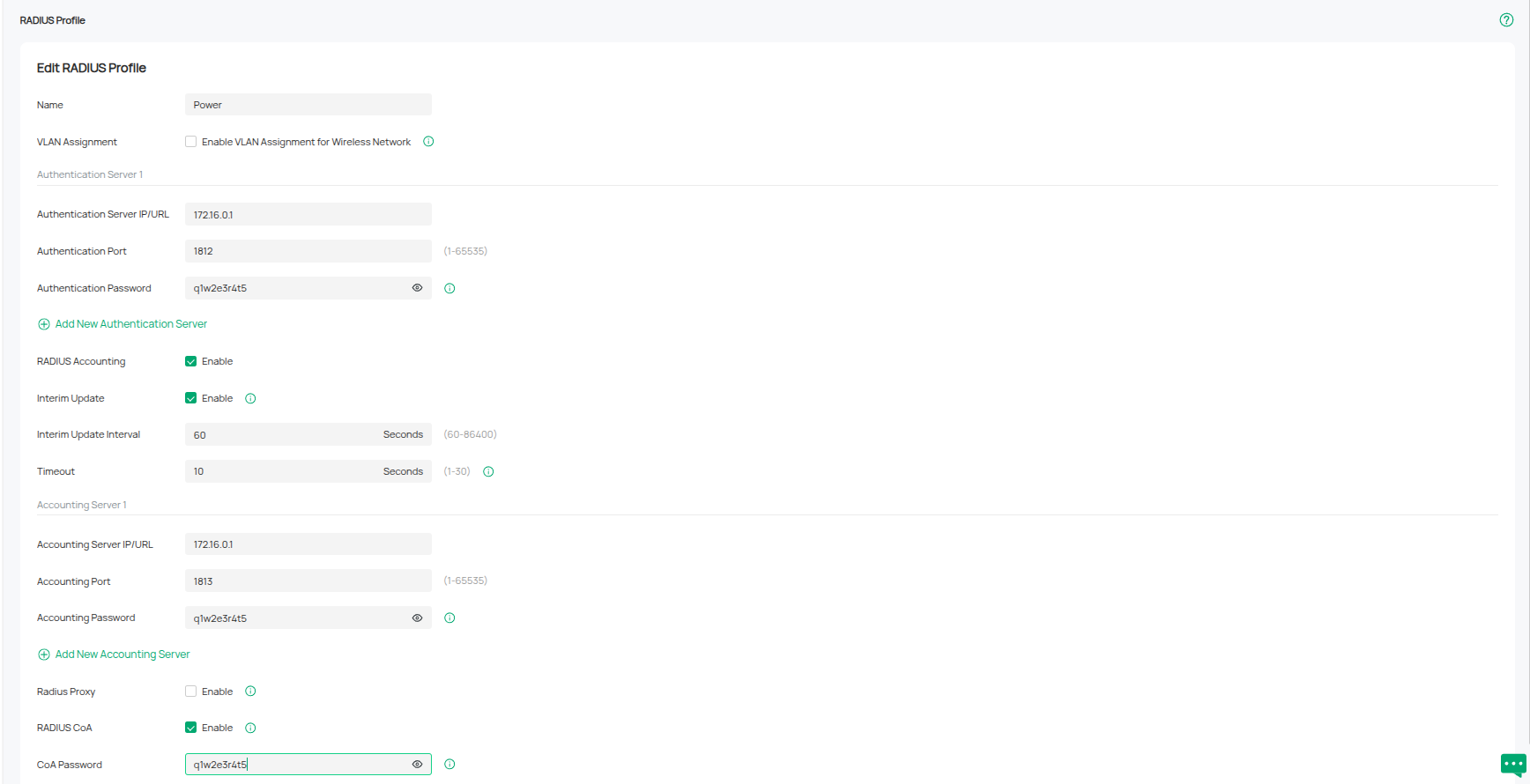

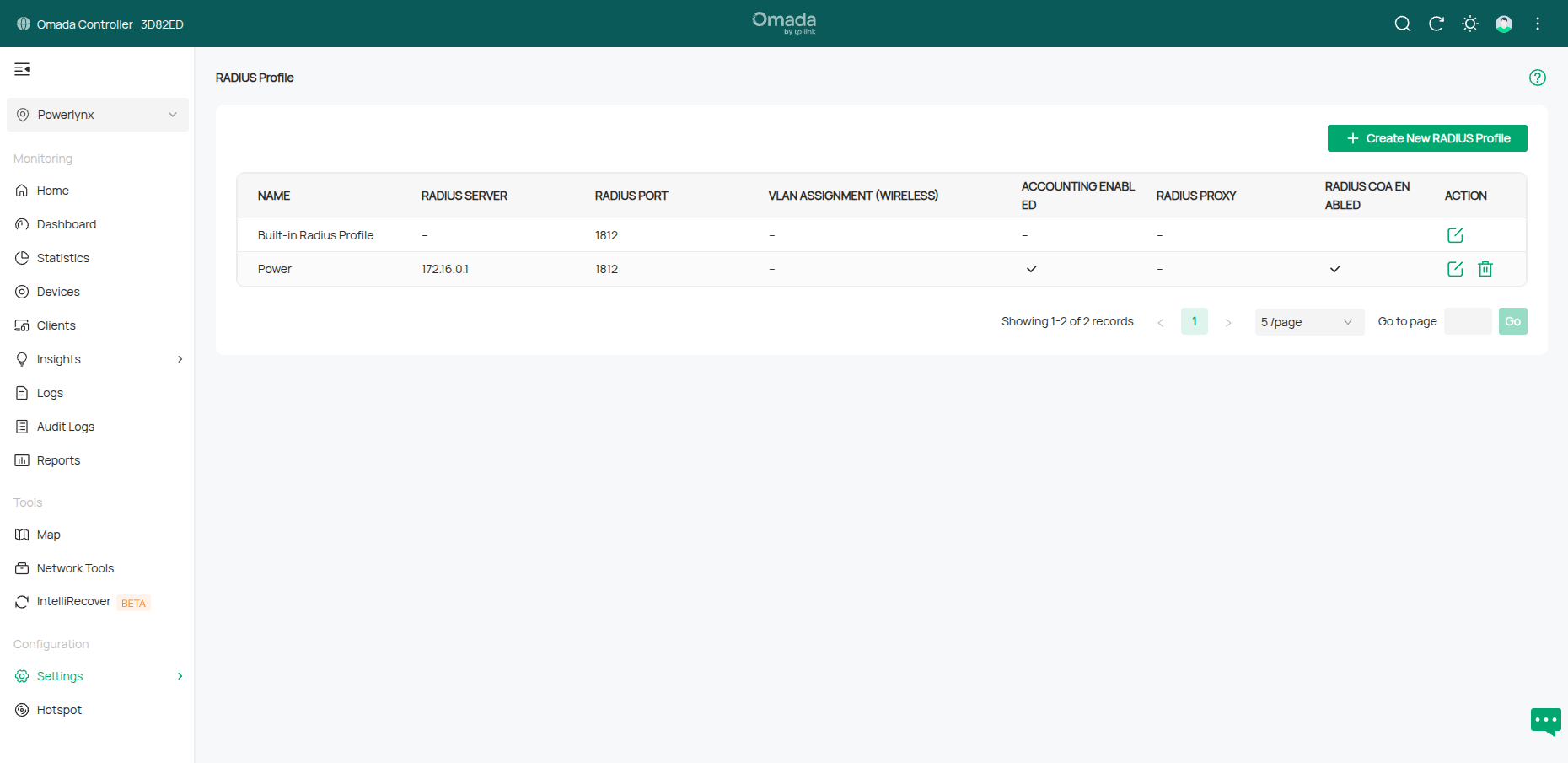

RADIUS Profile
| Setting | Value | Note |
|---|---|---|
| Authentication Server | 172.16.0.1:1812 |
By IP, not hostname — a hostname silently breaks accounting. |
| Accounting Server | 172.16.0.1:1813 |
Same — by IP. |
| Auth / Accounting / CoA password | <your-radius-secret> |
Exactly the hotspot’s RADIUS secret, all three fields. |
| Accounting | Enabled | |
| Interim Update Interval | 300 s (production) / 60 s (lab) | Must stay under Powerlynx accounting_interval × factor — see section 8. |
8. Recommended RADIUS attributes (Powerlynx NAS type “TP-Link (cloud)”)

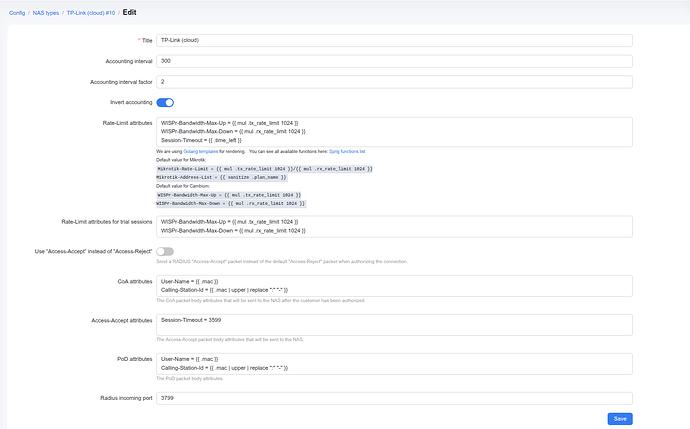

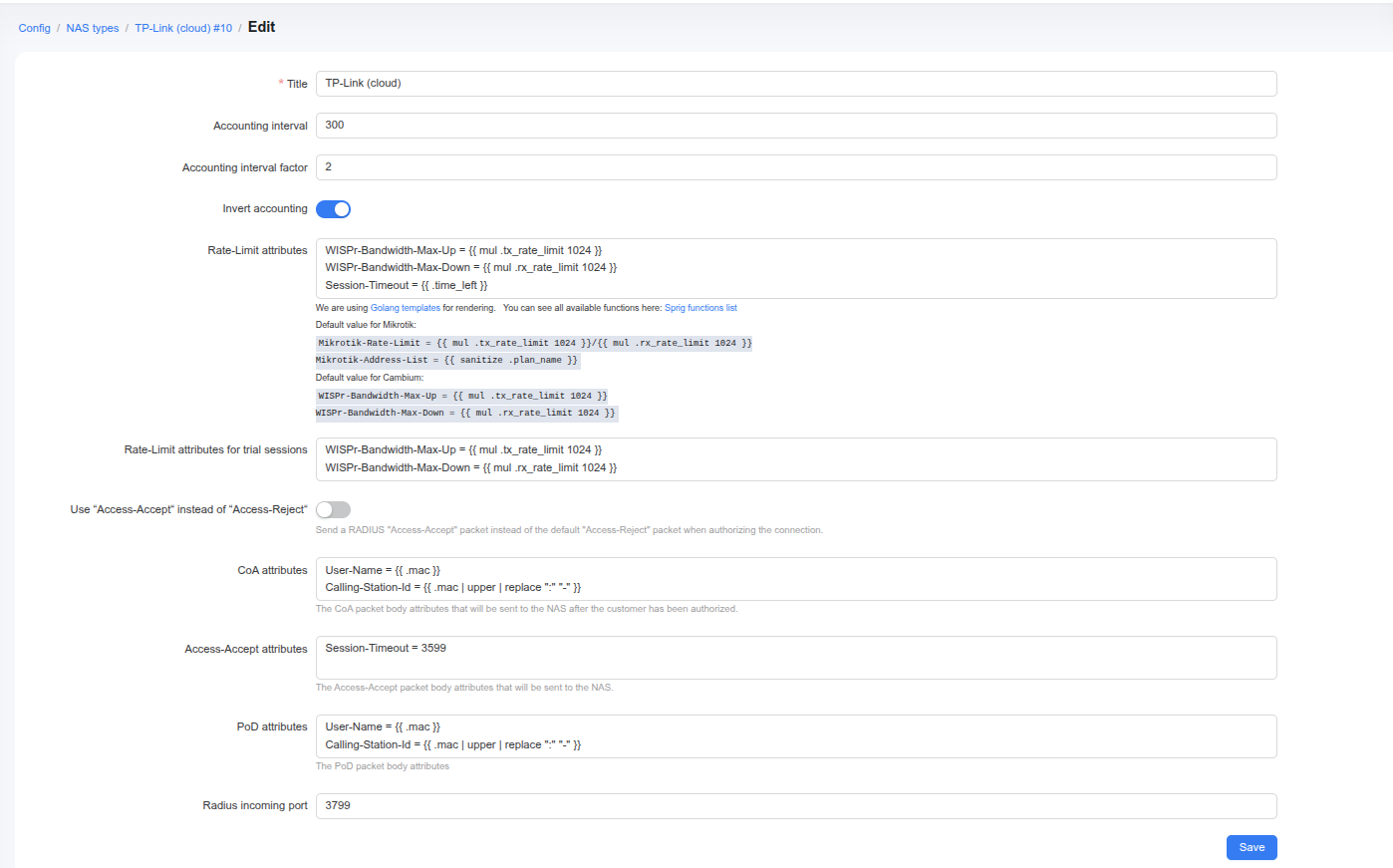

Set these on the Powerlynx NAS-type attribute templates. These values are what make rate limiting, session time, accounting direction, and disconnect actually work with Omada.
| Group | Attribute | Recommended value | Why |
|---|---|---|---|
| Rate limit | WISPr-Bandwidth-Max-Up |
{{ mul .tx_rate_limit 1024 }} |
Upload cap (kbps → bps). |
| Rate limit | WISPr-Bandwidth-Max-Down |
{{ mul .rx_rate_limit 1024 }} |
Download cap (kbps → bps). |
| Rate limit | Session-Timeout |
{{ .time_left }} |
Per-voucher remaining time. |
| PoD | User-Name |
{{ .mac }} |
Identifies the client to disconnect. |
| PoD | Calling-Station-Id |
See note below | upper |
| Accounting | Invert accounting | ON | See below. |
Calling-Station-Idline is what makes PoD work. Omada matches disconnects by a MAC in UPPERCASE with HYPHENS (e.g.AA-BB-CC-DD-EE-FF).
Powerlynx’s plain{{ .mac }}renders lowercase-with-colons, which Omada will not match — the disconnect is silently ignored with no ACK.
Use{{ .mac | upper | replace ":" "-" }}so the value matches Omada’s own format.
Invert accounting (ON): Omada is RFC-standard — Acct-Input = upload,
Acct-Output = download. With Invert accounting ON, Powerlynx maps these to the correct download/upload direction in its UI.
Interim Update interval (important coupling). Powerlynx force-closes a session if no accounting update arrives within accounting_interval × factor (the Powerlynx NAS-type fields). So the invariant is:
Omada Interim Update interval < Powerlynx
accounting_interval × factor
- Production (recommended): a 300 s interim interval is a common Wi-Fi / captive-portal
choice — it keeps volume/time accounting reasonably current without flooding the RADIUS
server. (RFC 2869 sets the floor at ≥ 60 s and suggests ≥ 600 s; 300 s is the usual hotspot
compromise for tighter quota accuracy, and 600 s is fine if you prefer strict RFC alignment.)
To use 300 s safely, set the Powerlynx NAS-type Accounting interval = 300 and
factor = 2 (a 600 s closer window), and Omada’s Interim Update Interval = 300 s.
9. Verify
On the controller host, capture RADIUS traffic on the tunnel interface:
sudo radsniff -i wg0 -p 1812 -x # captures 1812/1813/3799
# or, for disconnect only:
sudo tcpdump -ni wg0 -vv 'udp port 3799'
Checklist:
| Phase | Expect |
|---|---|
| Auth | Access-Request → Access-Accept. User-Name = MAC (no separator, uppercase); Calling-Station-Id = MAC upper-hyphen; NAS-IP-Address = <controller-tunnel-ip>. |
| Accounting | Start → Interim (at your configured interval) → Stop; download/upload direction correct with Invert ON. |
| PoD / disconnect | Trigger the disconnect from Powerlynx early in the session (so a Session-Timeout expiry cannot be mistaken for a successful kick). Success = a Disconnect-Request (carrying Calling-Station-Id in upper-hyphen) → Disconnect-ACK → client dropped with an Acct-Stop cause that is not Session-Timeout. |
Disconnect-ACKpacket is the definitive success signal for PoD. If you see aDisconnect-Requestbut no ACK, re-check theCalling-Station-Idformat (section 8).
Where to see authorized / online devices
- Powerlynx — the top-level Sessions page (and the Location’s sessions view) lists live/online sessions for the hotspot: client MAC, plan/voucher, data used, start and expiry.

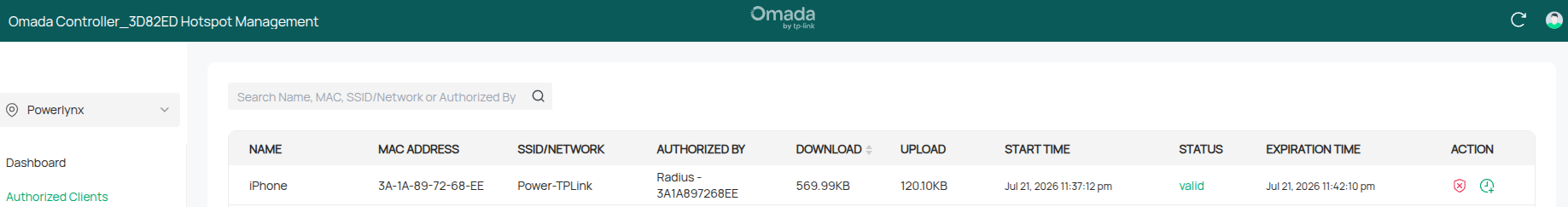

- Omada controller — Clients shows the device as
AUTHORIZED(auth typeRadius - …); Hotspot Management → Authorized Clients shows per-client download/upload, start and expiration time, and status.
10. Limitations & gotchas
- CoA-Request is NOT supported by Omada — it returns
CoA-NAK(Error-Cause “Unsupported-Attribute”). Only Disconnect/PoD works. Anything that would rely on a mid-session CoA (changing rate/time, trial→paid promotion) will not take effect on Omada; it requires disconnect + re-authentication instead. - Trial Sessions are not currently usable with the TP-Link Omada NAS type. With Trial sessions enabled (Config → Captive portal → Trial sessions), the trial flow does not work on Omada — the client is authorized and then immediately dropped (
Session-Timeout= 0, lands on the status page with no Internet). Leave Trial sessions disabled for locations served by a TP-Link Omada hotspot, and use vouchers instead. - Omada’s built-in WireGuard is gateway-only — it does nothing on a Software Controller. Terminate WireGuard at the OS level on the controller host (
wg-quick). - RADIUS servers must be set by IP, not hostname — a hostname silently breaks accounting.
- Omada Cloud has no working CoA/PoD endpoint — a self-hosted controller is required for disconnect to function.
References
Official TP-Link / Omada documentation (the tp-link.com FAQ/download links redirect to the Omada docs site support.omadanetworks.com; both resolve):
- Omada Software Controller — download, all versions (5.15.x is under “Previous Version”):
Omada Software Controller | A Free On-Premises Software Controller for Centralized Management | Omada Network Support - Install the Software Controller on Linux (FAQ 3272):
How to install Omada Software Controller on Linux system | Omada Network Support - Ports used by the Omada Controller (FAQ 3281):
Which ports do Omada SDN Controller and Omada Discovery Utility use? (above Controller 5.0.15) | Omada Network Support - RADIUS + External Web Portal API (FAQ 2912):
API and Code Sample for RADIUS Server with External Web Portal (Omada Controller 4.1.5 or above) | Omada Network Support - Omada Software Controller — product overview:
Omada Software Controller | Omada Free On-Premises Software Controller for Centralized Management | Omada by TP-Link - Omada SDN Controller — user guide:
Omada SDN Controller User Guide | TP-Link - TP-Link EAP225 (v3) — access point:
EAP225 | AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point | TP-Link - RFC 2869 — RADIUS Extensions (
Acct-Interim-Interval, §5.16):
https://www.rfc-editor.org/rfc/rfc2869.txt
